🔋 Power Supply 2.0

Power Supply Gen 2 for 400 W

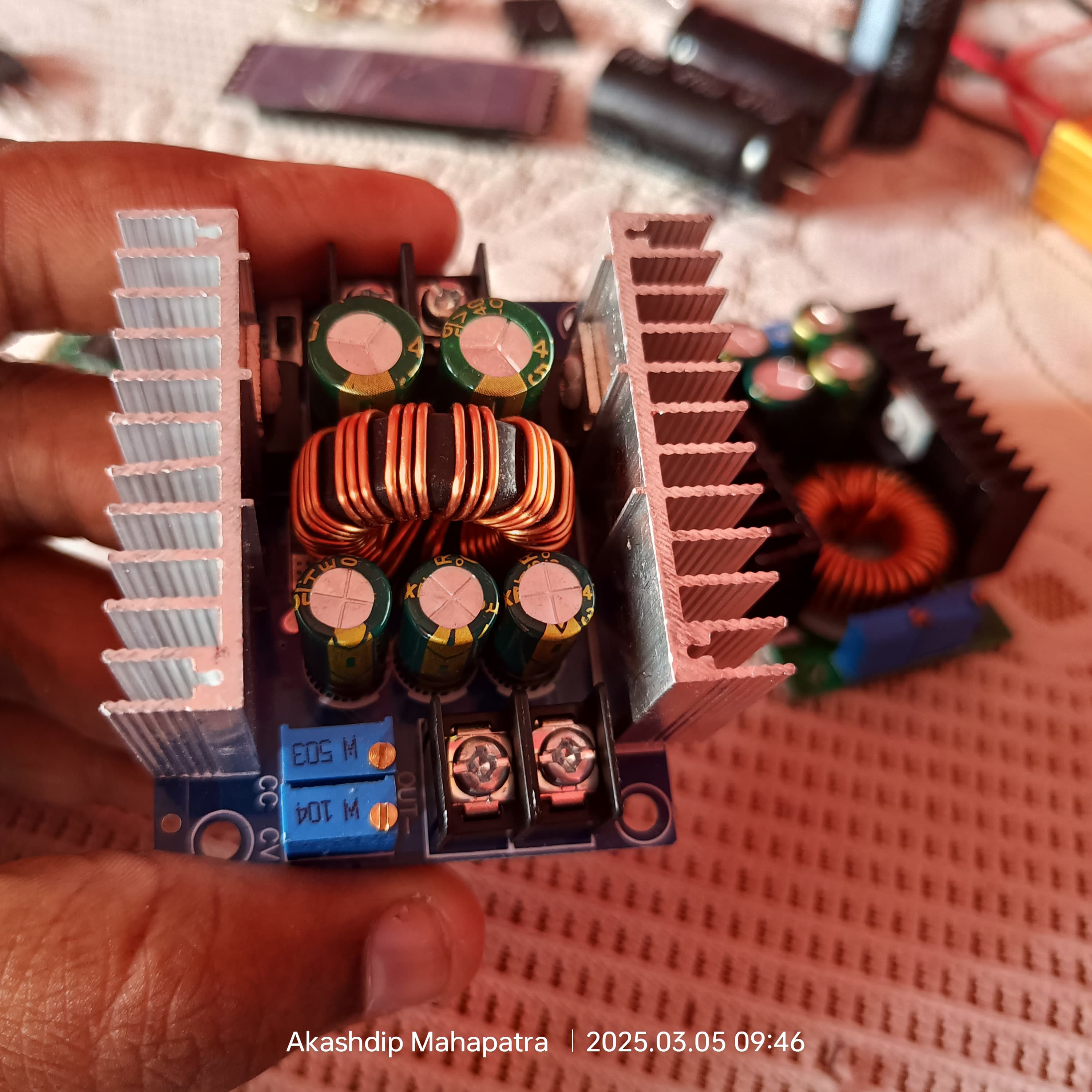

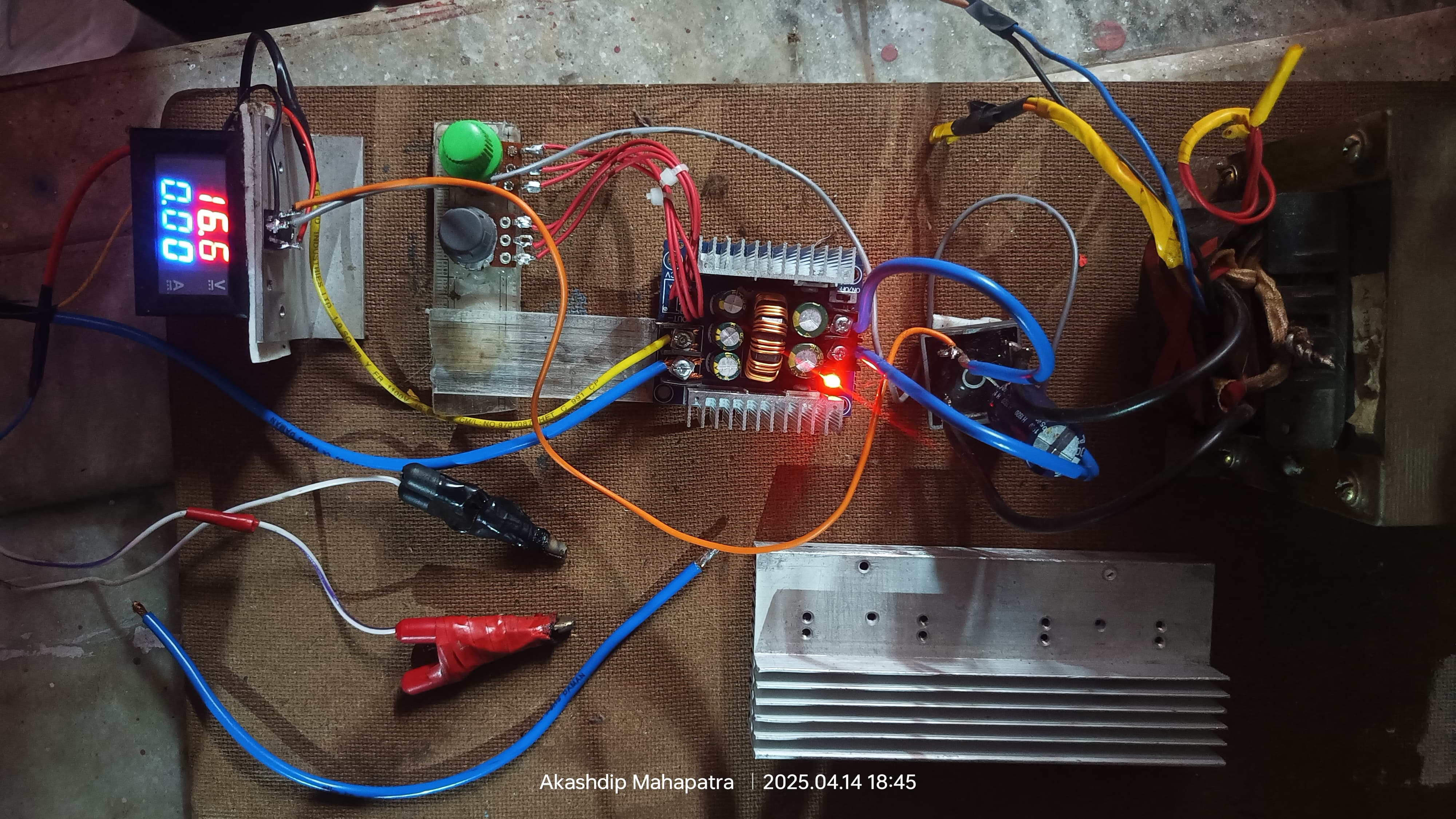

This above image is Gen 2.0 model. with 20 amp DC to DC

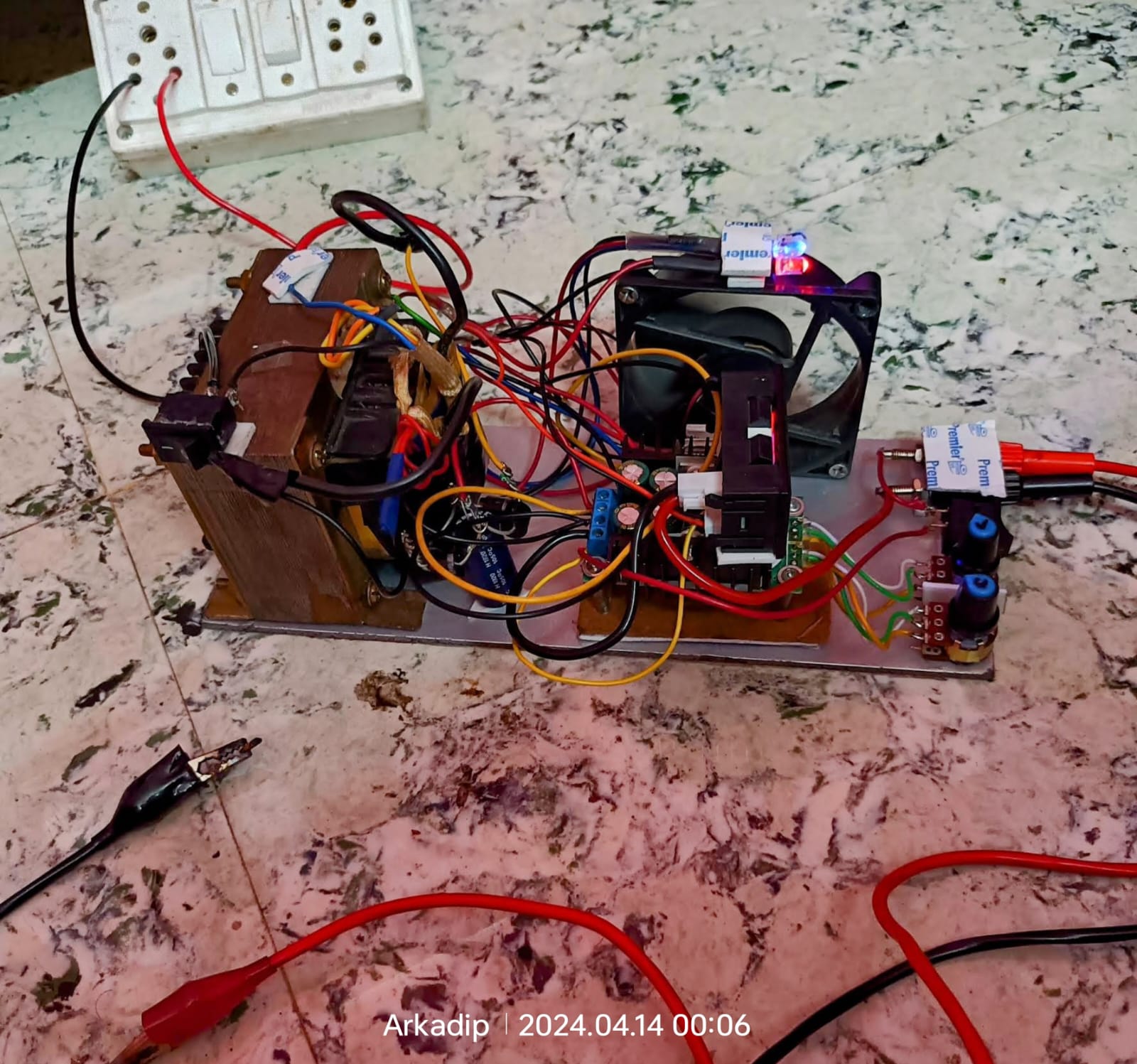

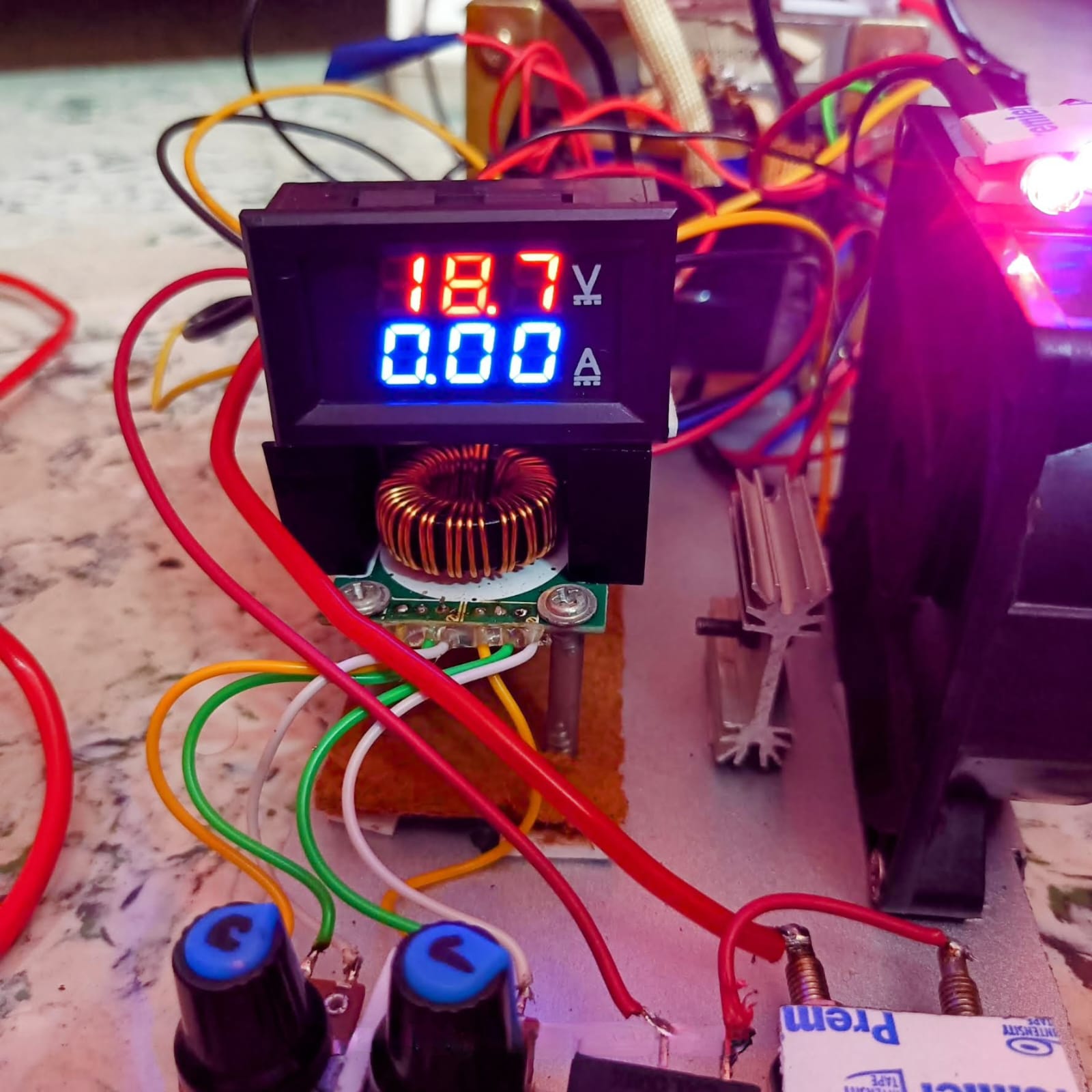

⚙️ Old Model (Gen 01):

🔬 GitHub & 🕸️ Website

🔌 Input Power

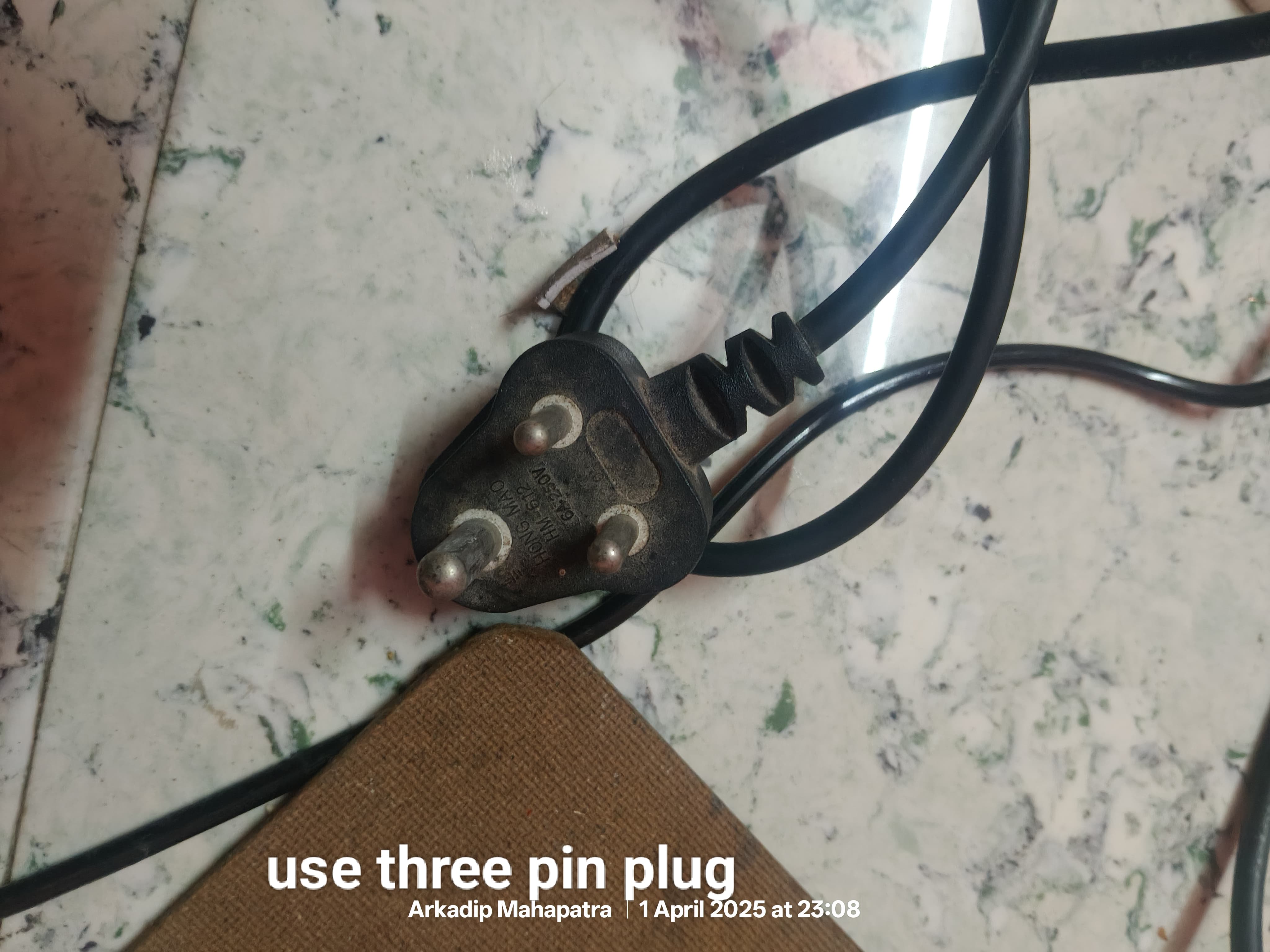

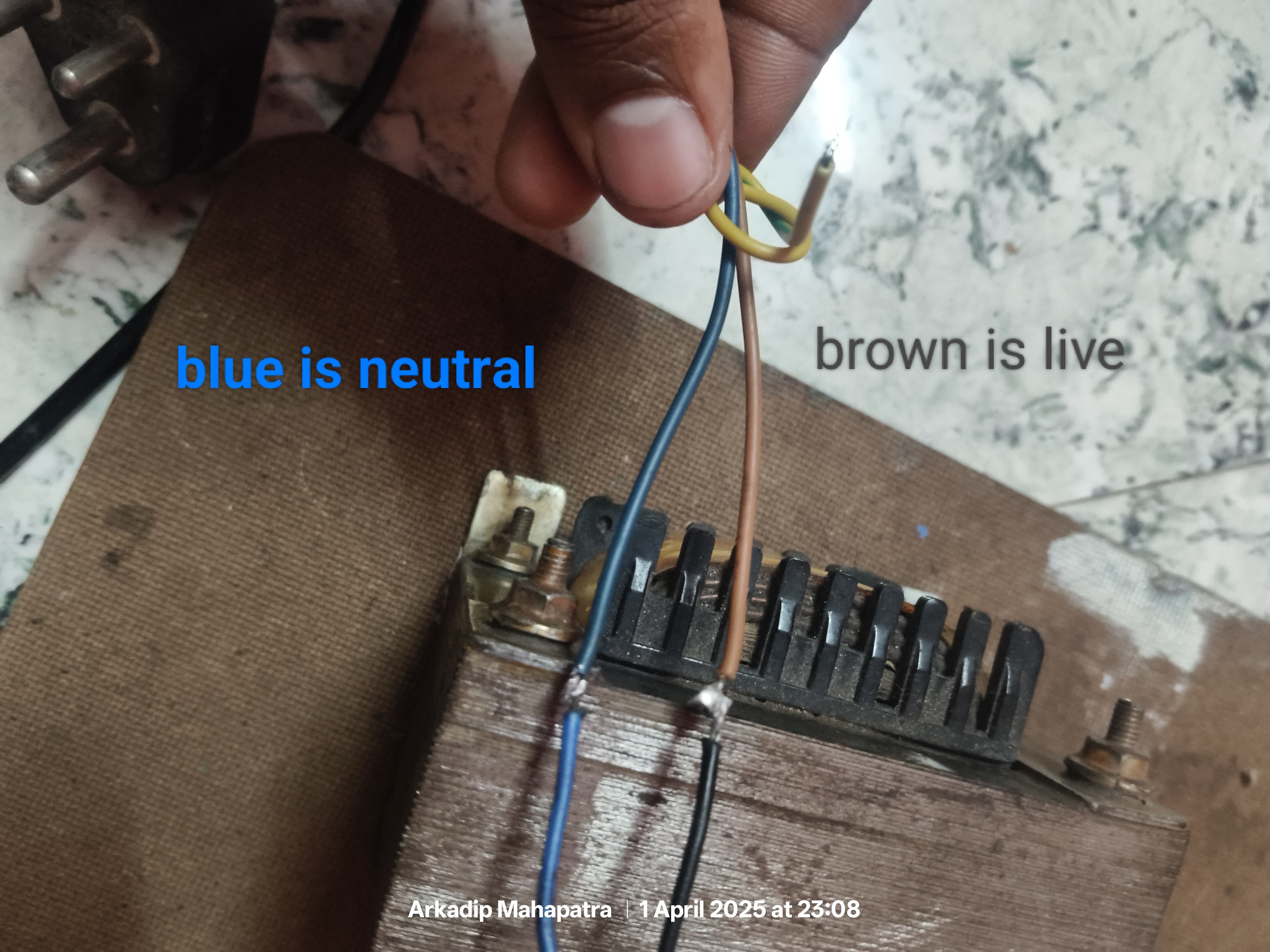

• AC mains input of 230V at 50Hz

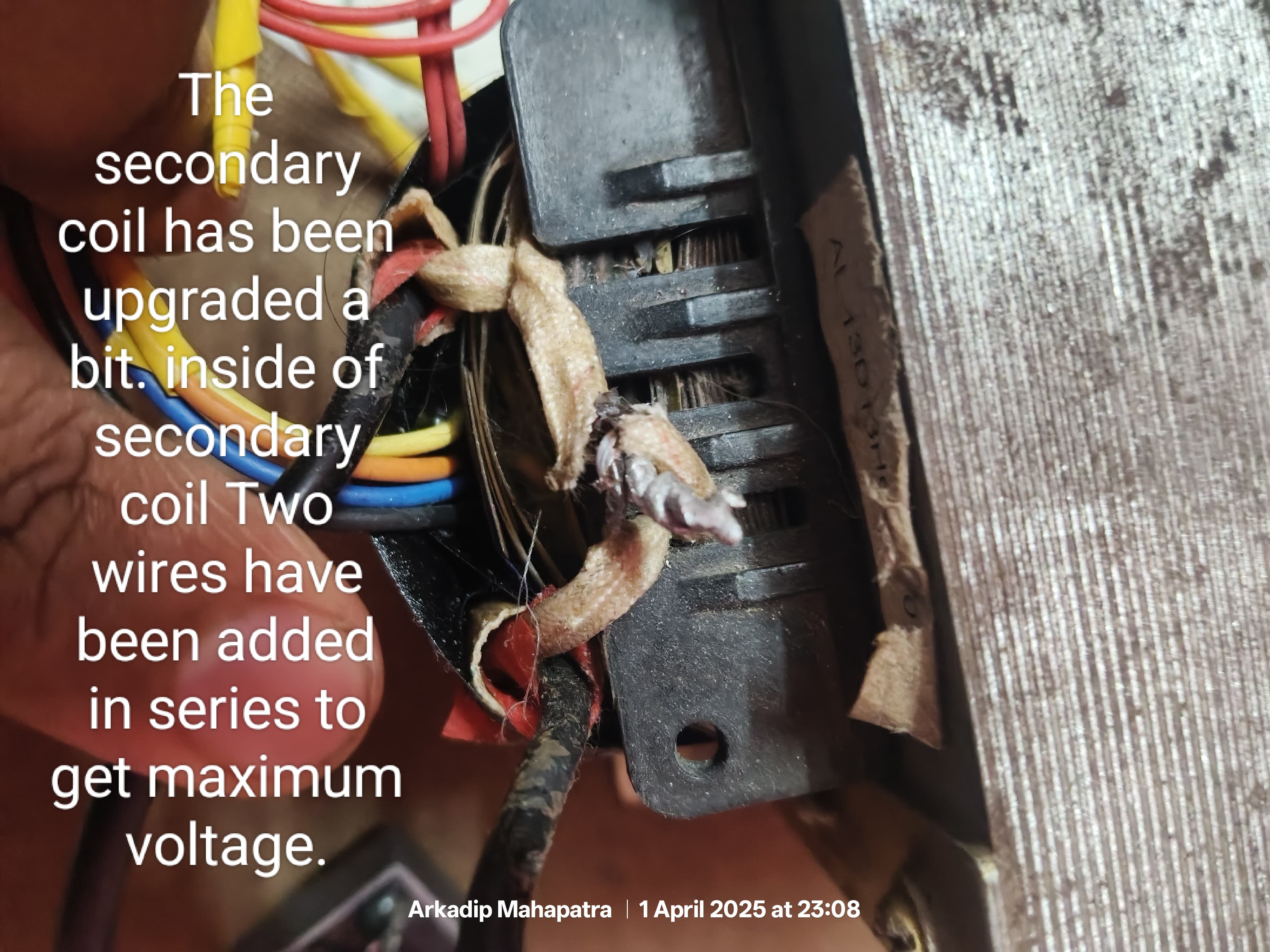

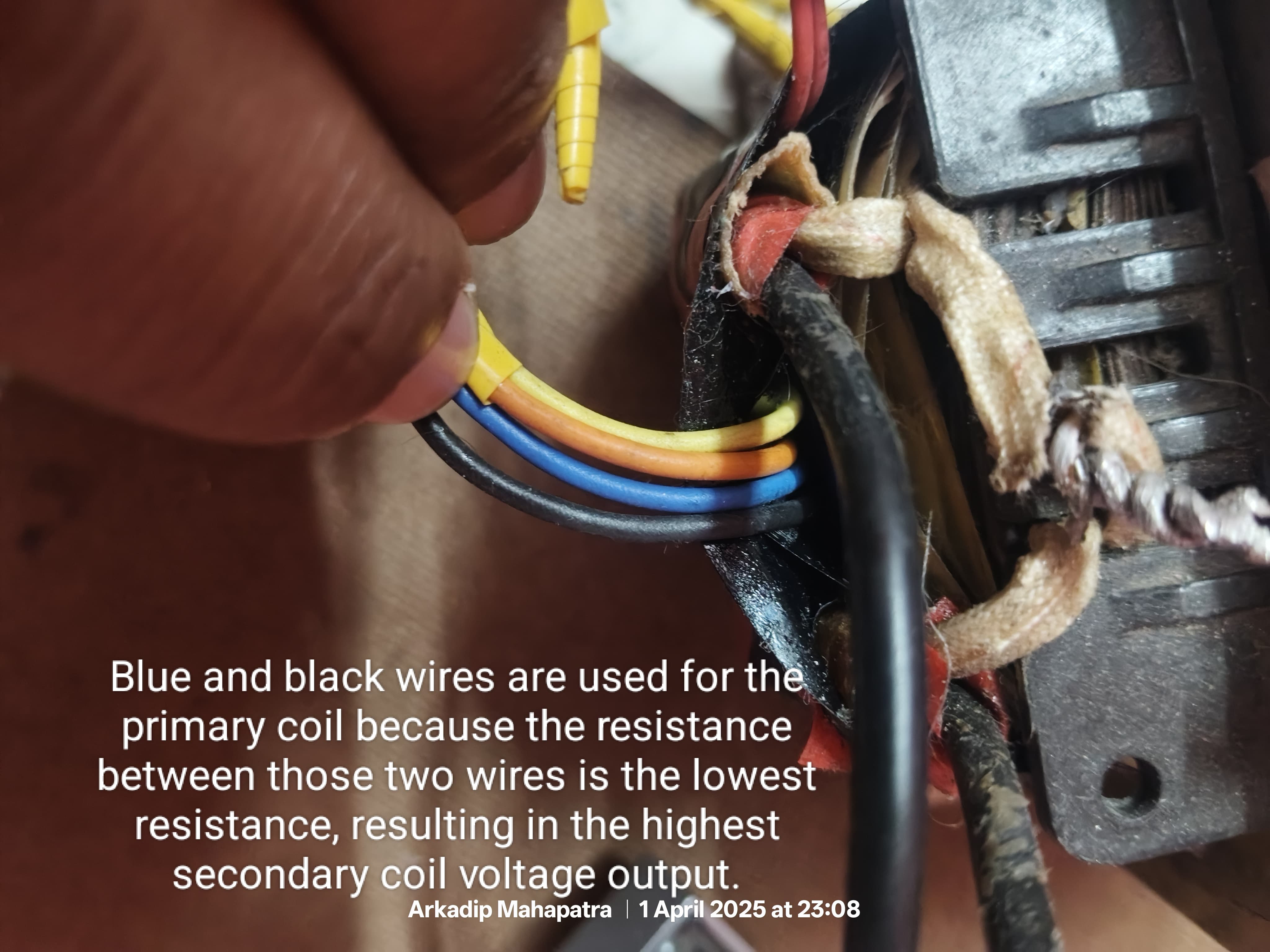

• Connected to a step-down transformer (230V to secondary, 1.5A)

🔃 Rectification Stage

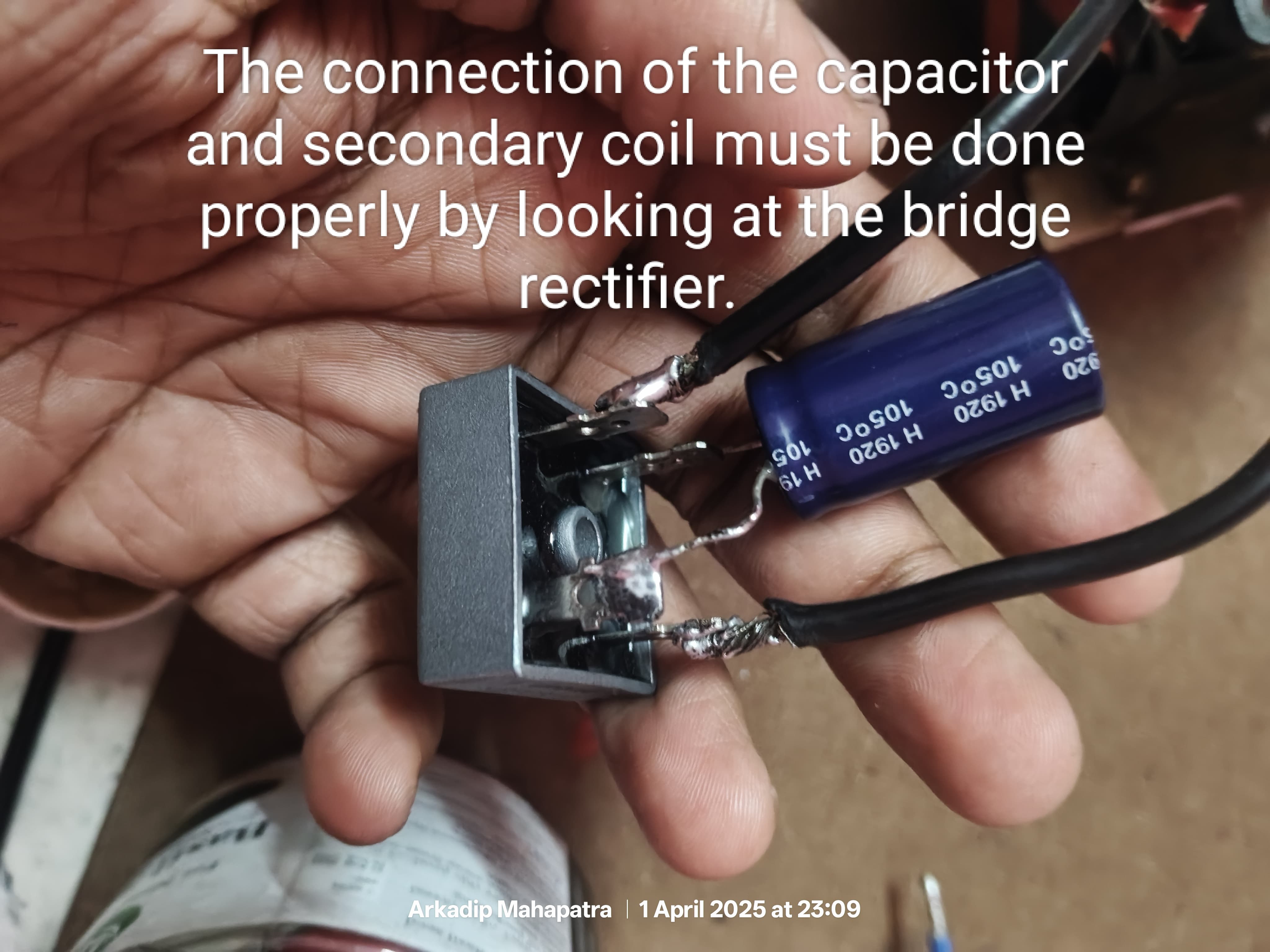

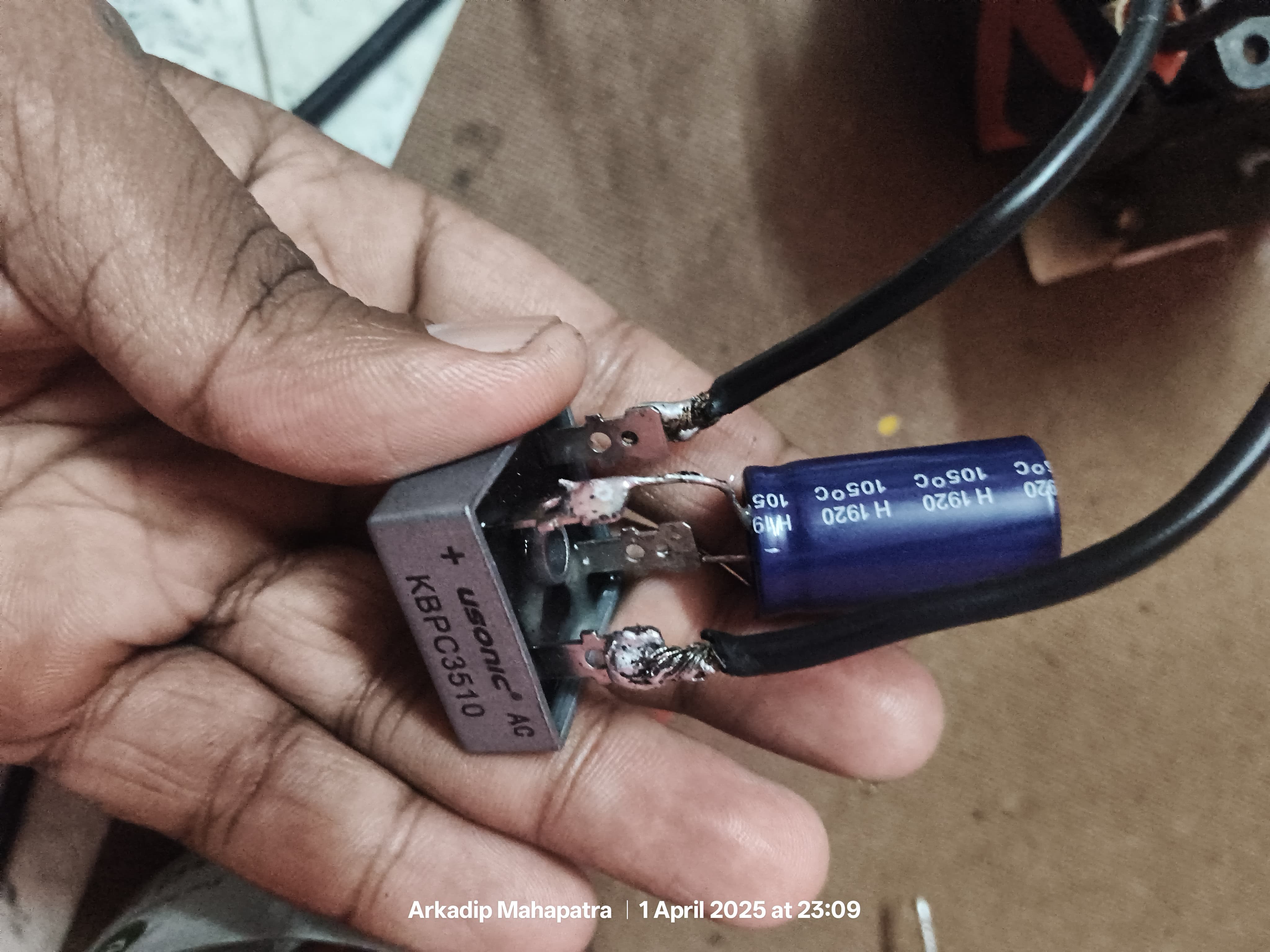

Full-wave rectifier using 4x 6A4 diodes in bridge config.

🔧 Smoothing Stage

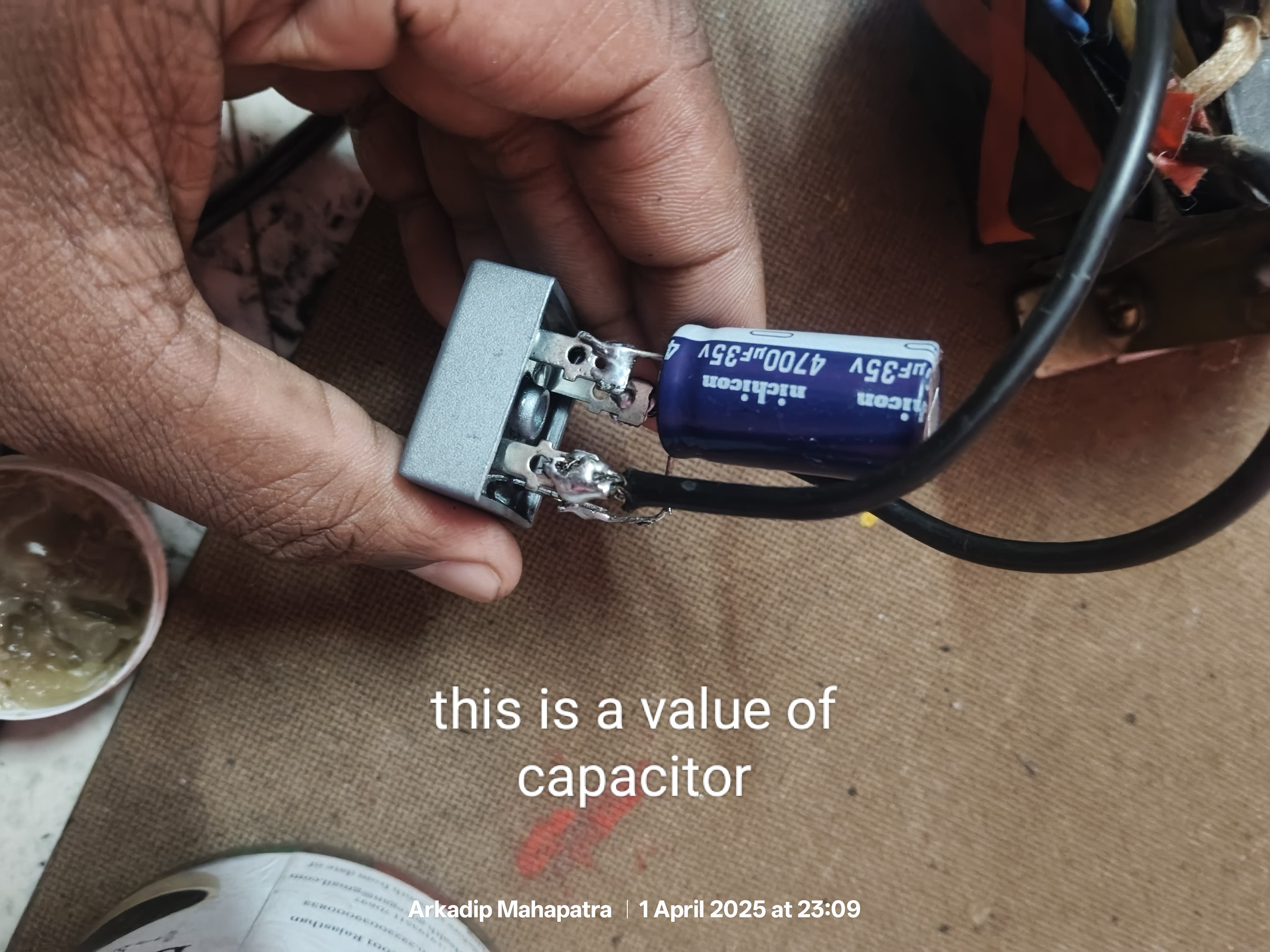

470μF capacitor (35V) filters the DC output.

🔋 Voltage Regulation Stage

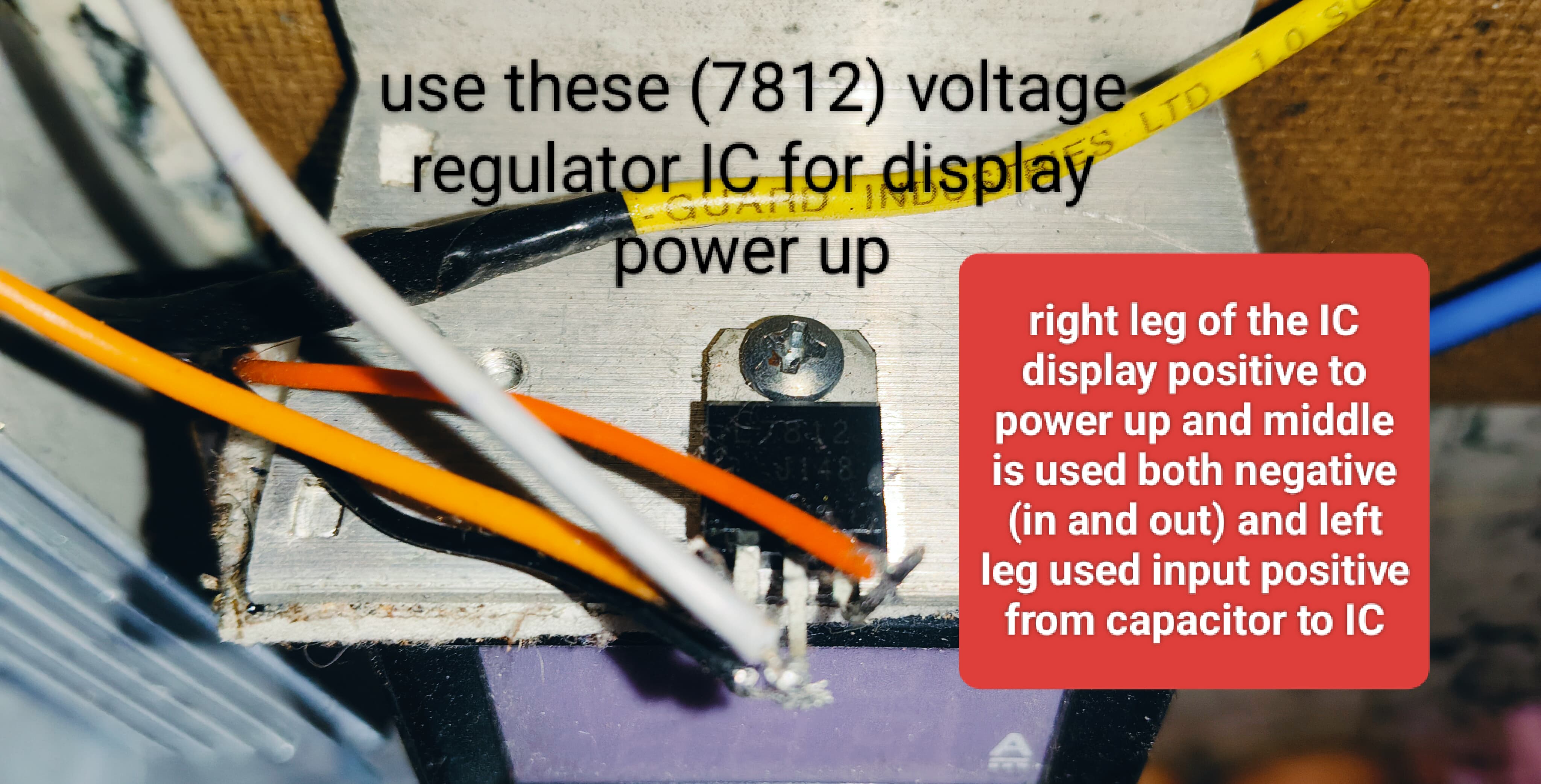

Uses 7815 and 7805 ICs for +15V and +5V outputs.

🌀 Cooling Mechanism

Heat sink + cooling fan on voltage regulators.

⚡ Output Stage

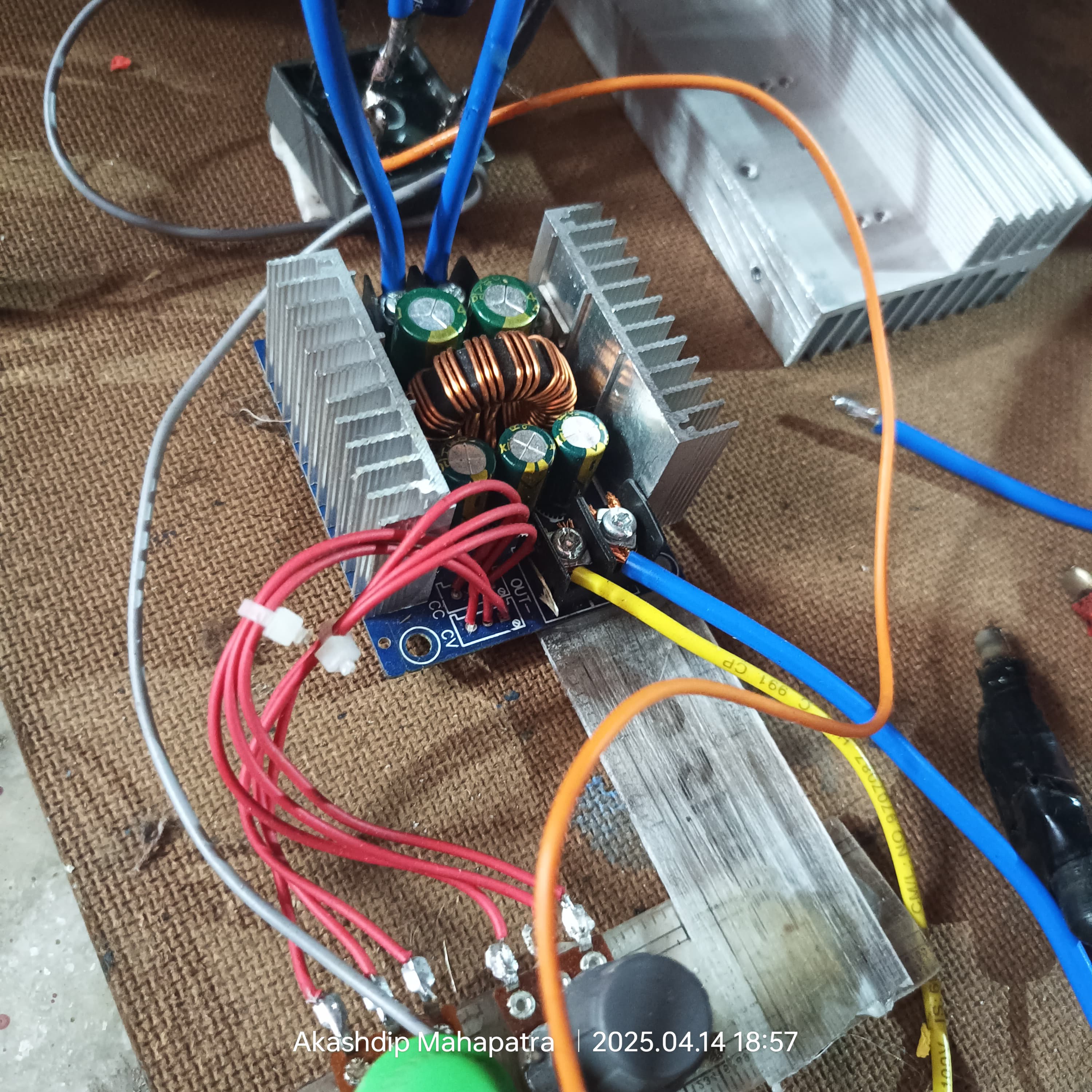

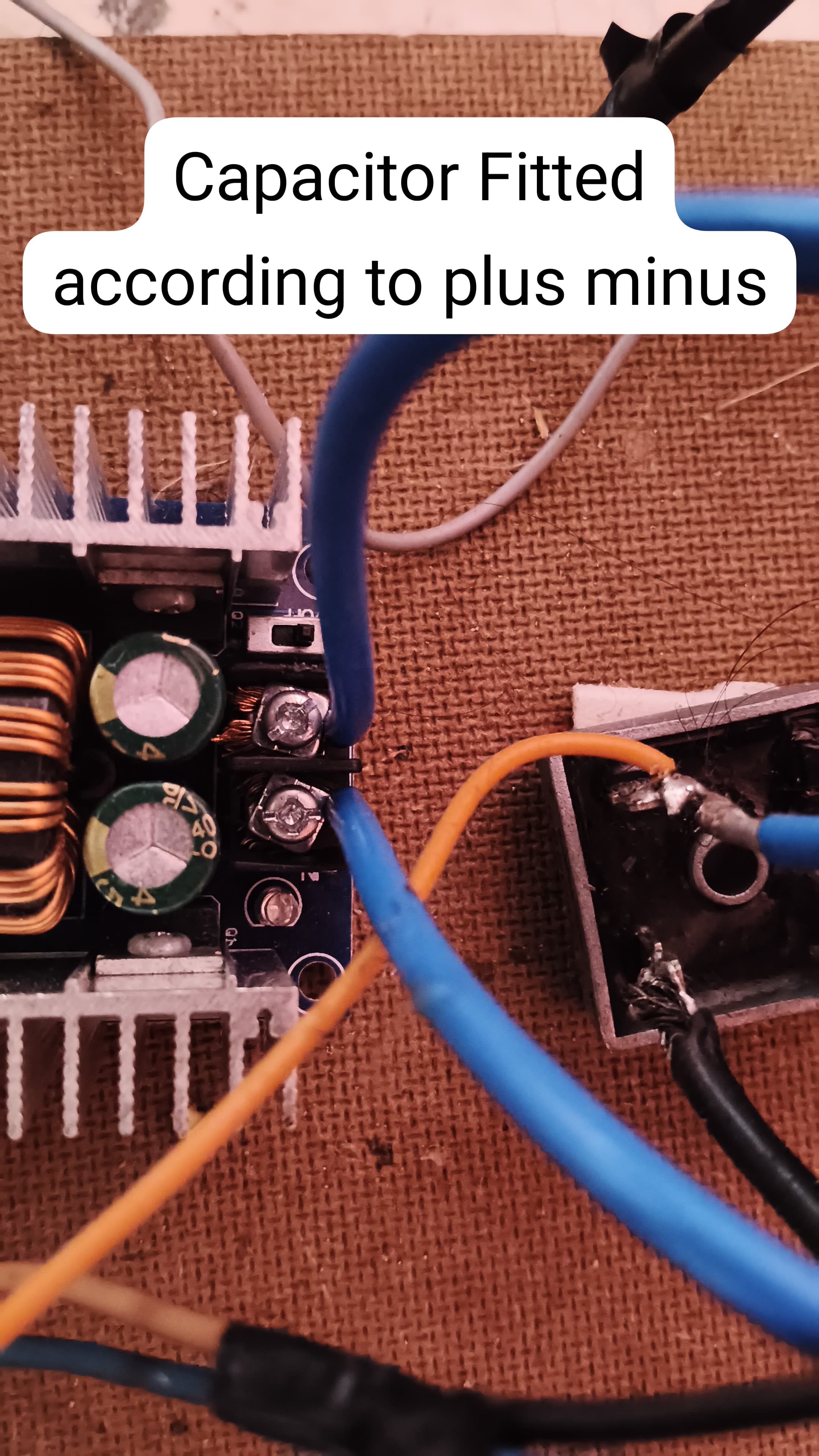

300W 10A 30V Buck Converter controls final output.

🎚️ Control and Switching System

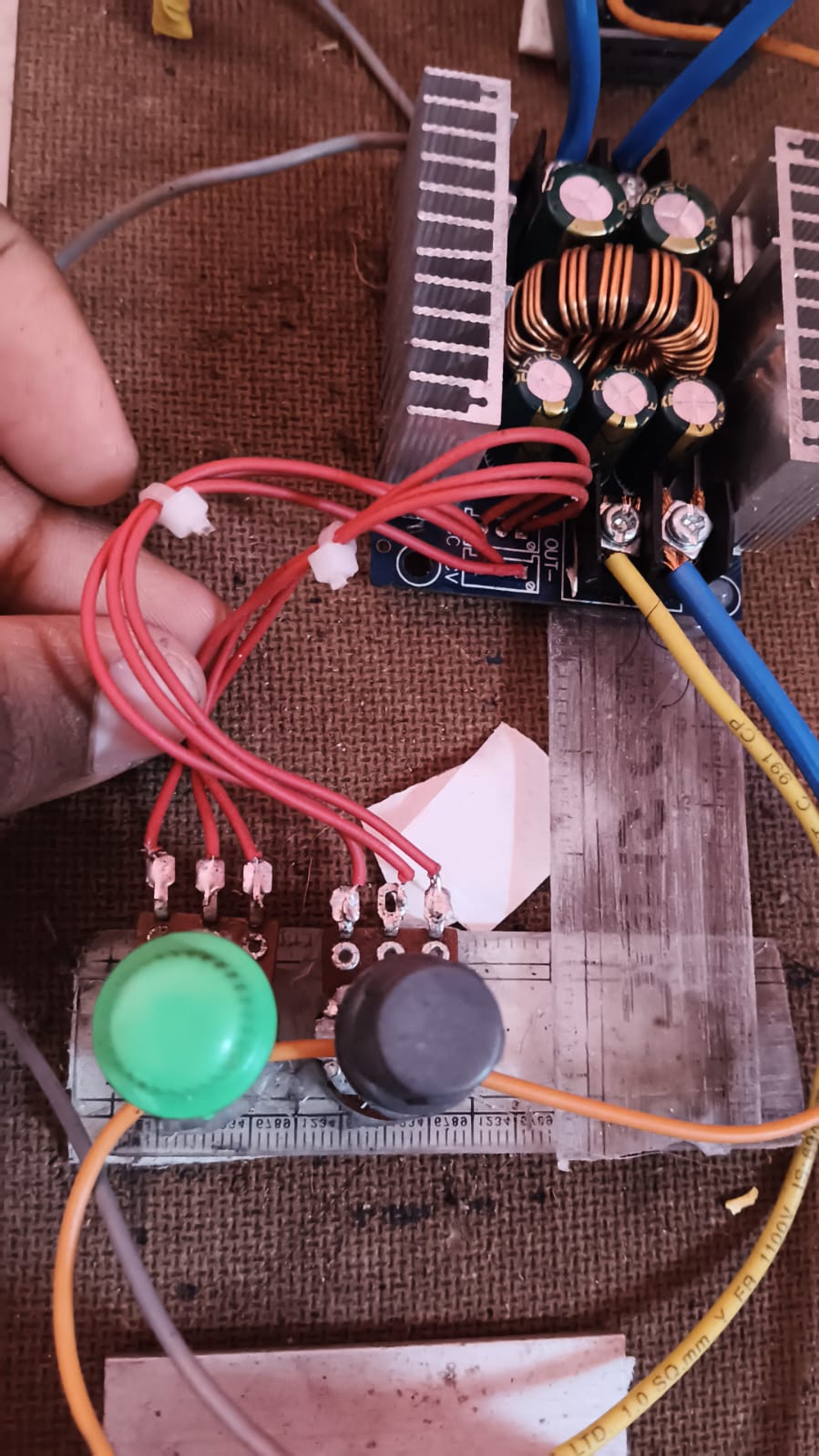

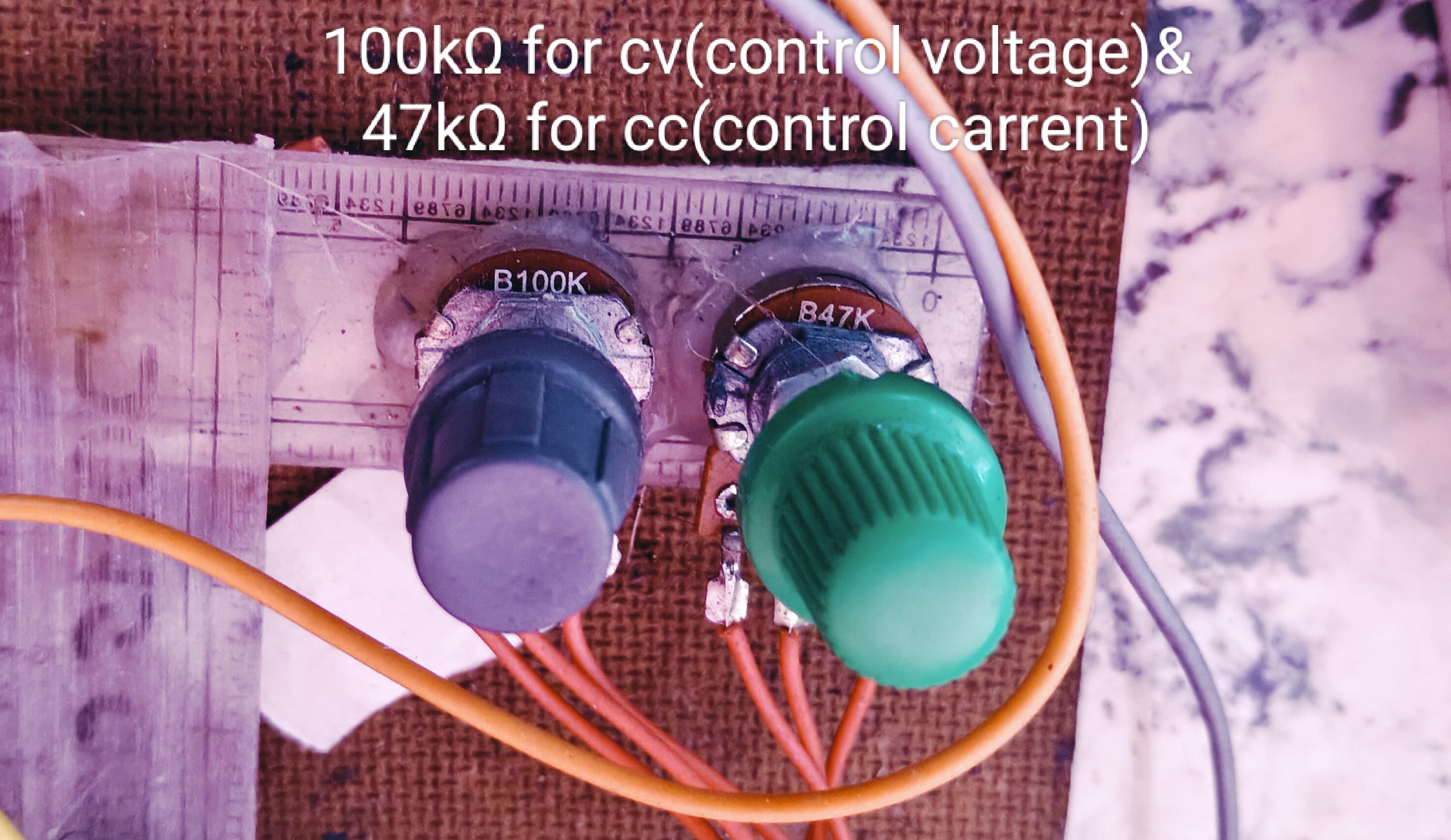

• 10kΩ Potentiometers for voltage/current
• Black switch: main power control
• Red switch: electroplating ON/OFF

Try to control wirelessly via LAN using Raspberry Pi

📟 Display System

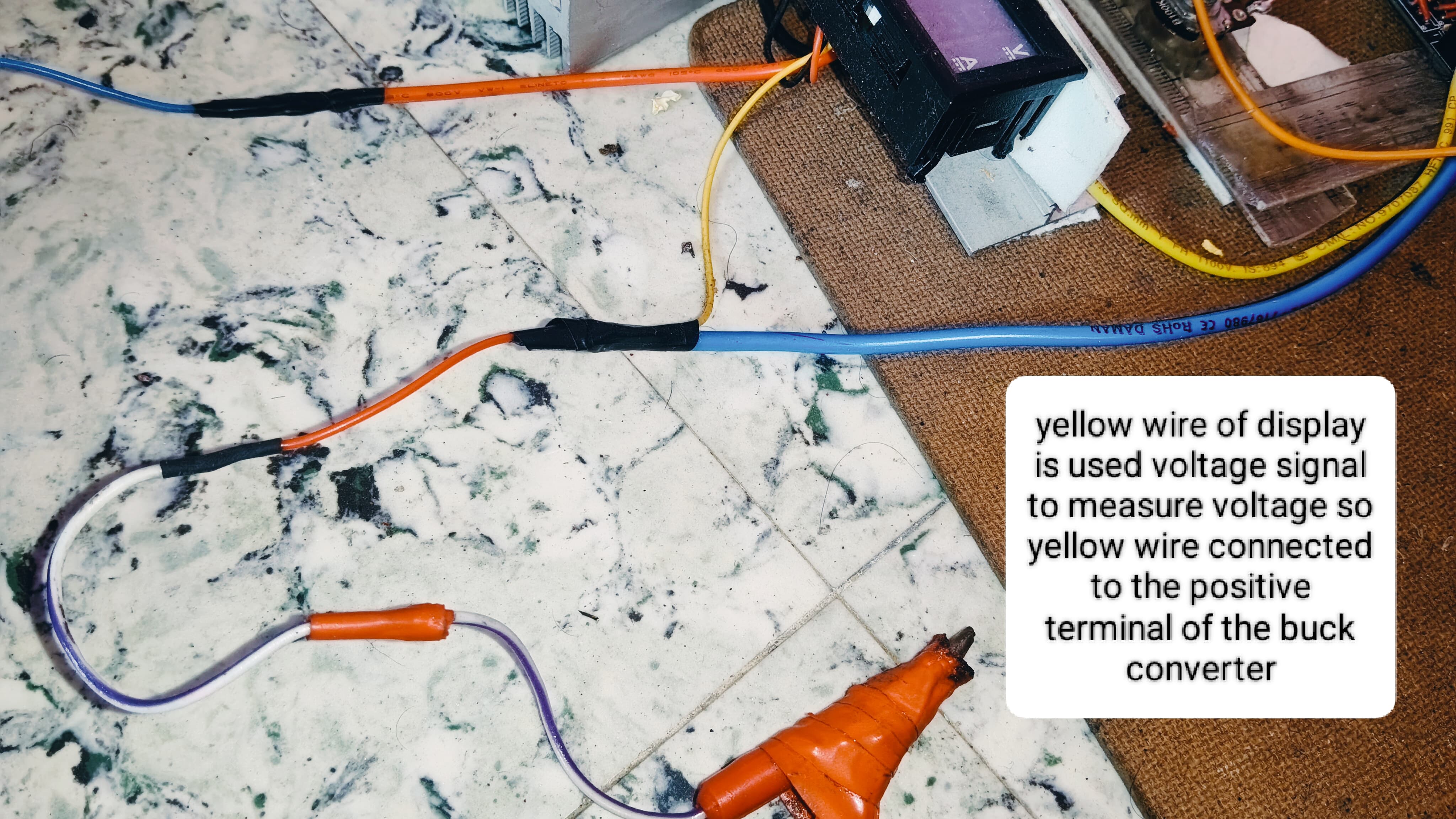

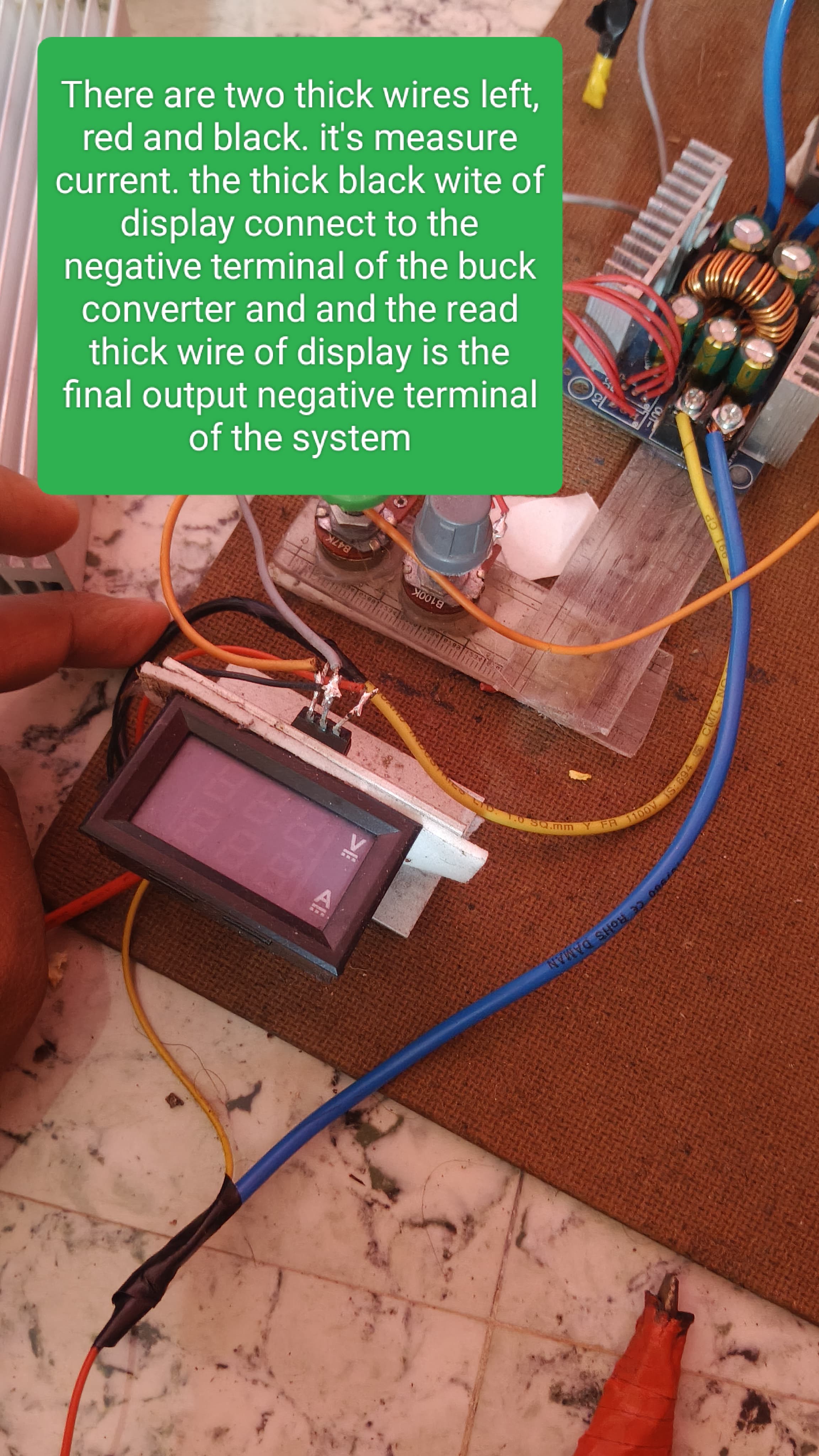

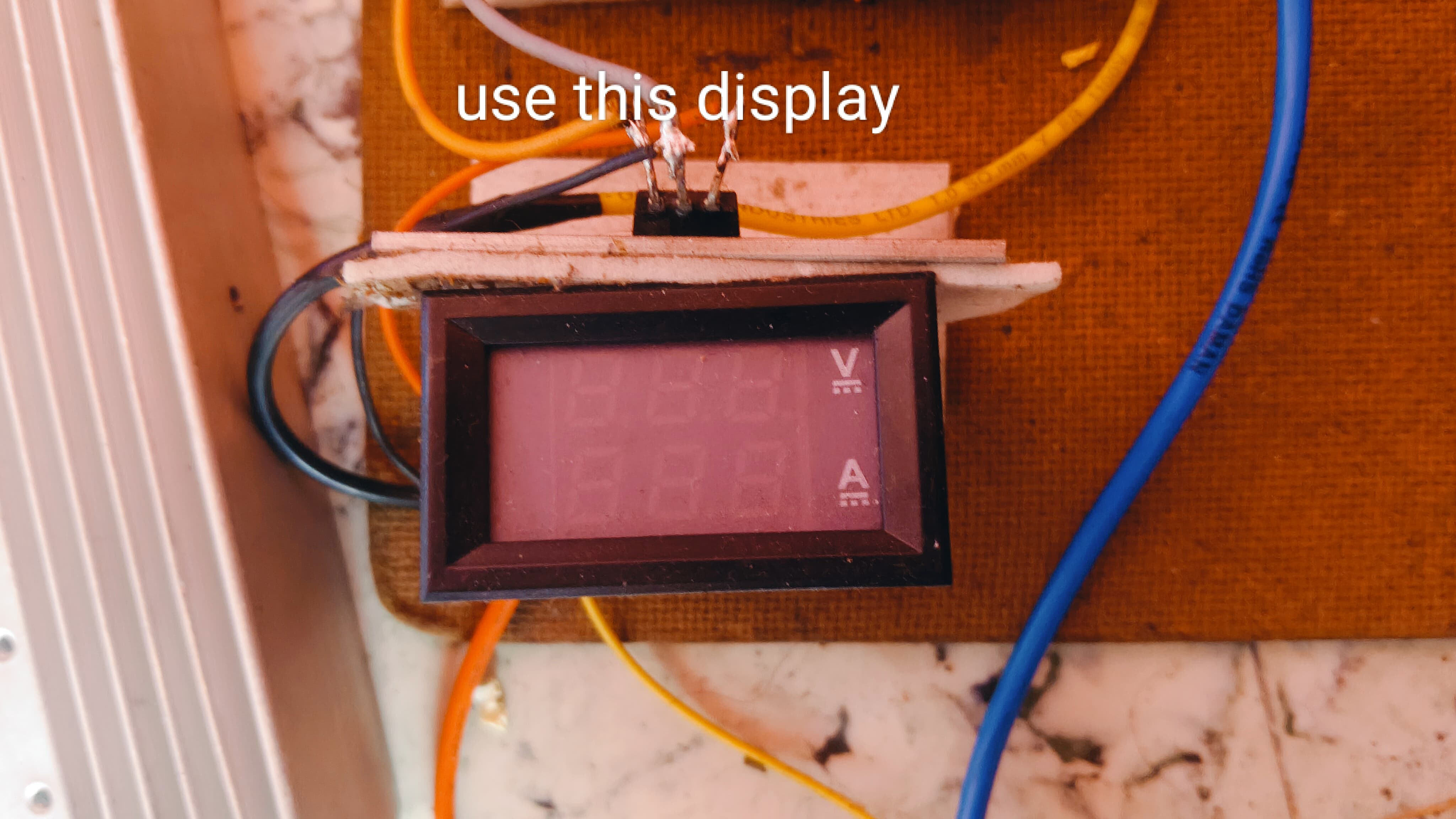

Digital Voltmeter + Ammeter to show output. Measures using buck converter + shunt resistor.

💡 LED Indicators

• Red LED: Process indicator
• Other LEDs: Power status & buck converter ON

⚠️ Circuit Precautions

• Limit current to 5-8A
• Use proper insulation and cooling
• Good soldering ensures durability

⚡ Alternate Circuit

Download the Video

📌 Gen 01 Update

Total Cost: ₹3245 (Gen 01). Includes all components and repair expenses. Learn more

📸 Gen 01 Gallery

Update Gen 01 with Resistors (limit 9V 4amp) - March 2025

📸 Gen 2.0 Gallery
